ABX00069

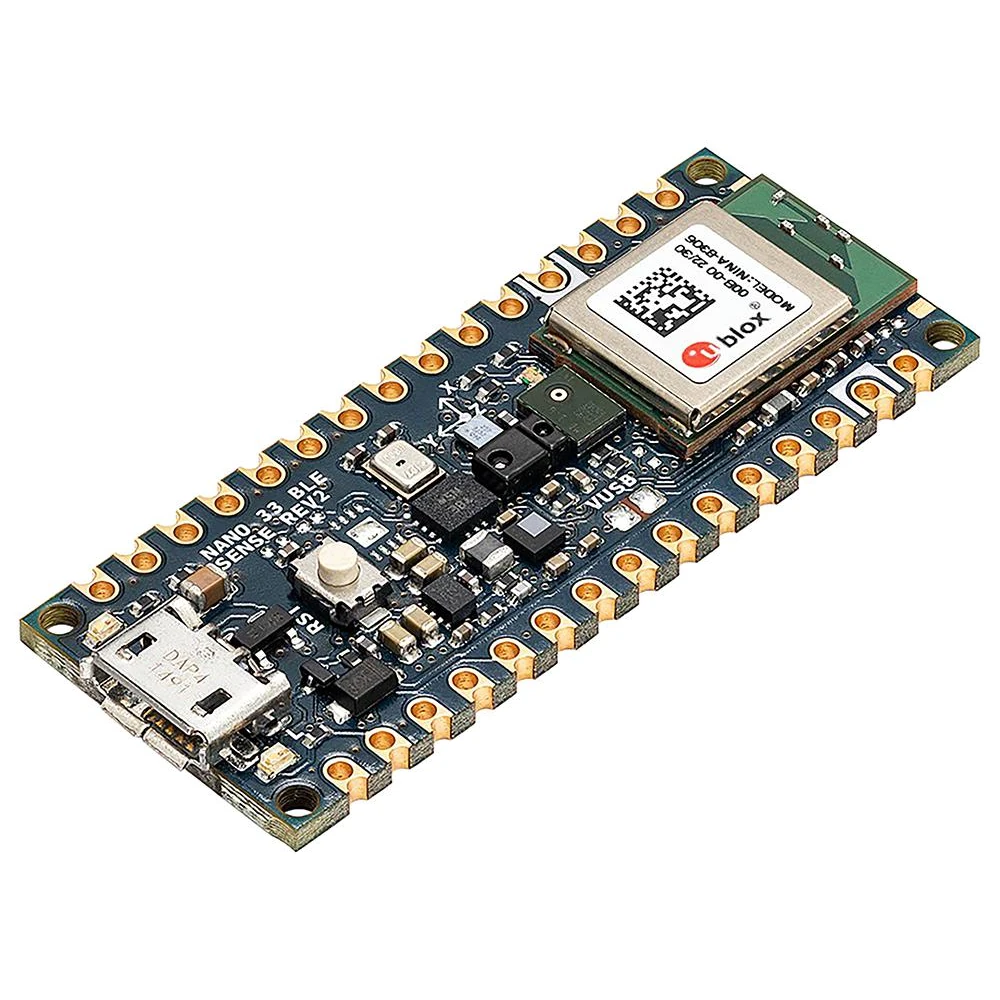

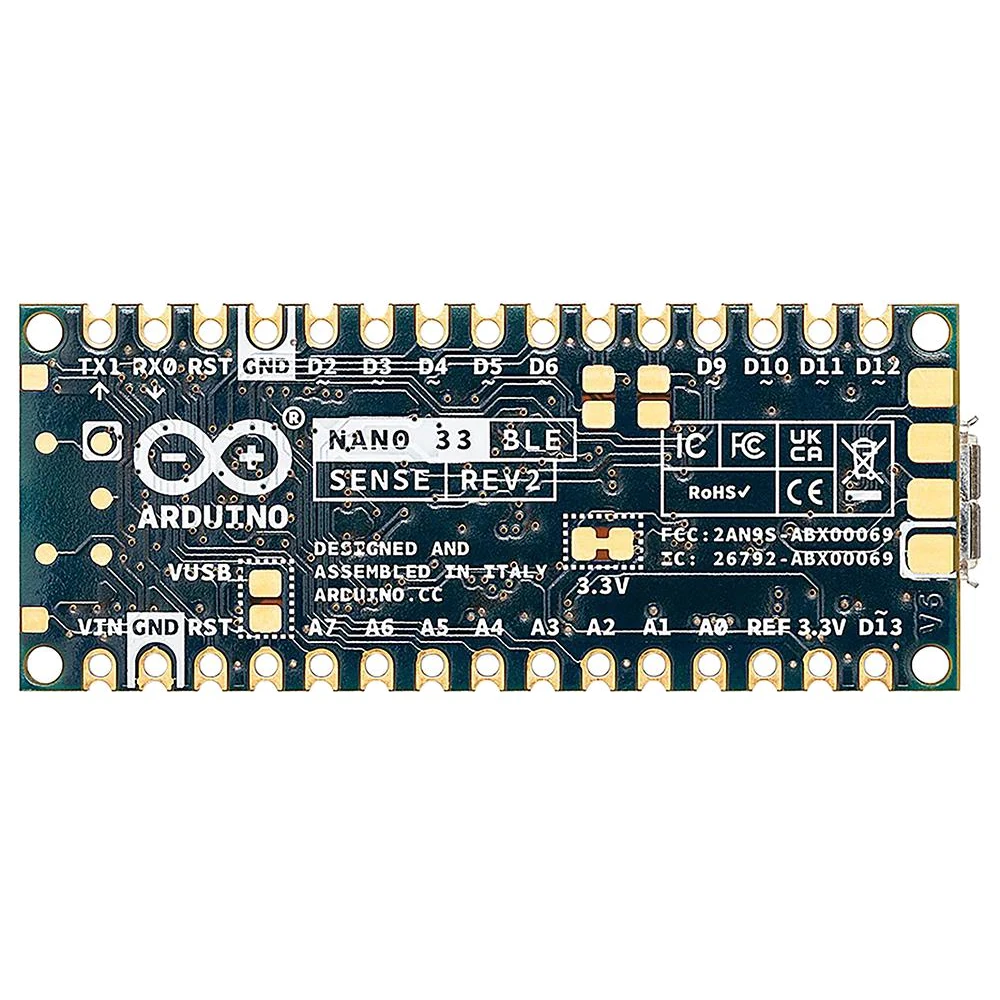

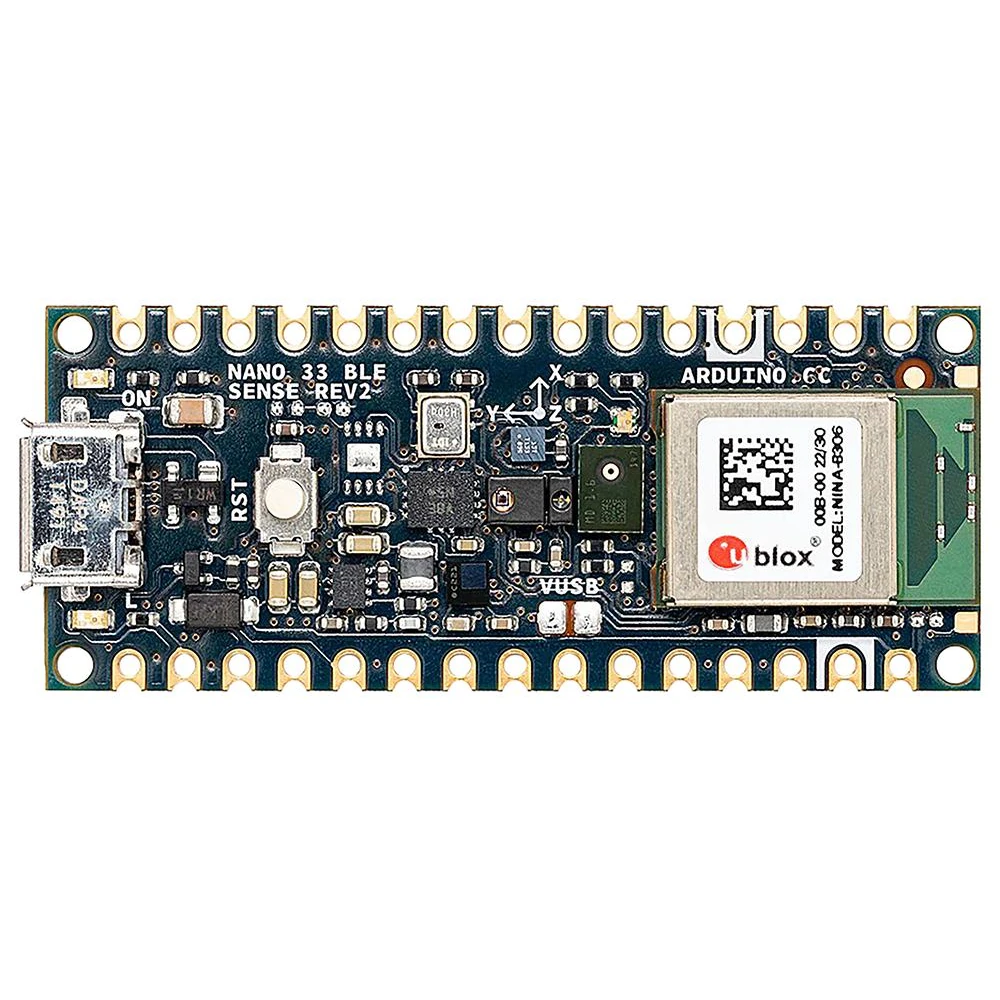

Arduino Nano BLE Sense Rev2 Connect ilman rimoja

59.90 sis. ALV24%

Varastotuote
Tuotetunnus (SKU): ABX00069 Osasto:

Arduino Nano on pienikokoinen koekytkentälevy-yhteensopiva kortti, joka perustuu ATmega328:aan (Arduino Nano 3.0).

Tuotetiedot:

NINA B306 Module
Processor
64 MHz Arm® Cortex®-M4F (with FPU)
1 MB Flash + 256 KB RAM
Bluetooth® 5 multiprotocol radio
2 Mbps
CSA #2
Advertising Extensions
Long Range
+8 dBm TX power
-95 dBm sensitivity
4.8 mA in TX (0 dBm)
4.6 mA in RX (1 Mbps)
Integrated balun with 50 Ω single-ended output
IEEE 802.15.4 radio support
Thread
Zigbee
Peripherals
Full-speed 12 Mbps USB
NFC-A tag
Arm CryptoCell CC310 security subsystem
QSPI/SPI/TWI/I²S/PDM/QDEC
High speed 32 MHz SPI
Quad SPI interface 32 MHz
EasyDMA for all digital interfaces
12-bit 200 ksps ADC
128 bit AES/ECB/CCM/AAR co-processor
BMI270 6-axis IMU (Accelerometer and Gyroscope)
16-bit
3-axis accelerometer with ±2g/±4g/±8g/±16g range
3-axis gyroscope with ±125dps/±250dps/±500dps/±1000dps/±2000dps range
BMM150 3-axis IMU (Magnetometer)
3-axis digital geomagnetic sensor
0.3μT resolution
±1300μT (x,y-axis), ±2500μT (z-axis)


Lue lisää tuotteesta: https://docs.arduino.cc/resources/datasheets/ABX00069-datasheet.pdf
